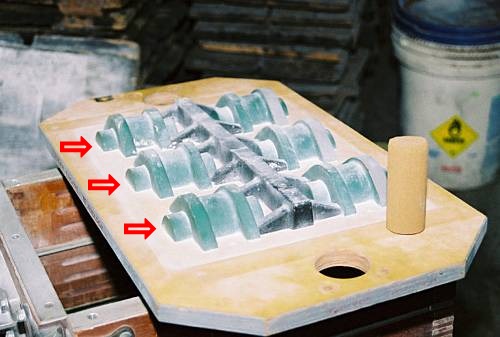

This is the pattern board that the core belongs to. After the sand is rammed up and the patterns removed from the mold the cores are placed into the mold where indicated by the arrow. By using the core the casting uses less metal and there is less machining to be done late.
