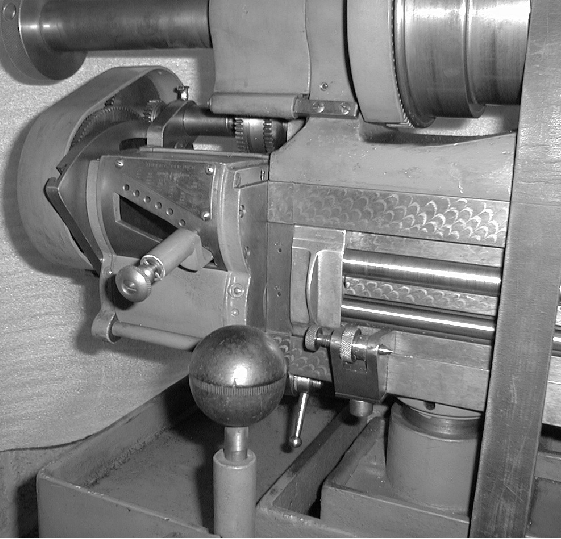

	Screwcutting Gearbox

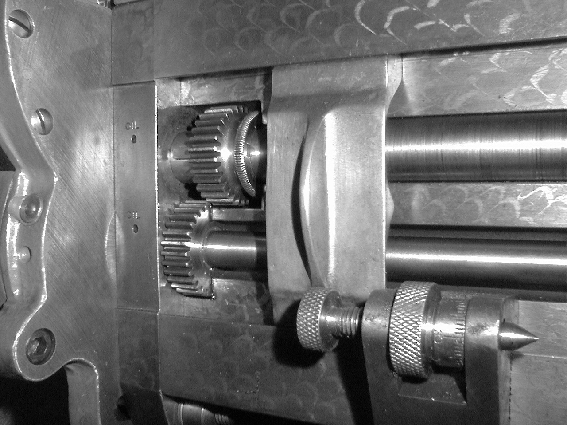

	Sliding drive gear from leadscrew to power-shaft - and carriage micrometer stop

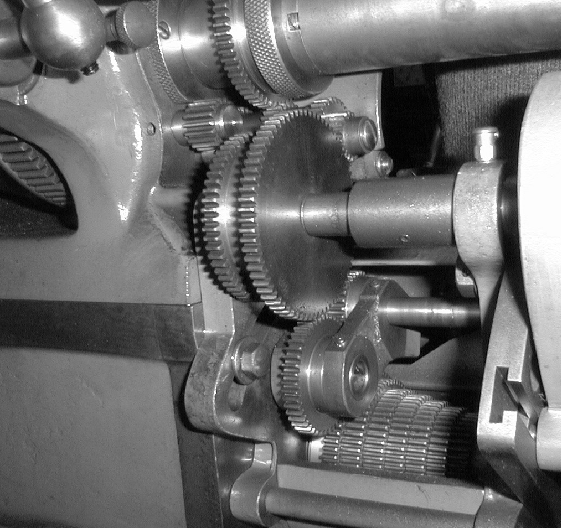

	Rear view of screwcutting gearbox and drive

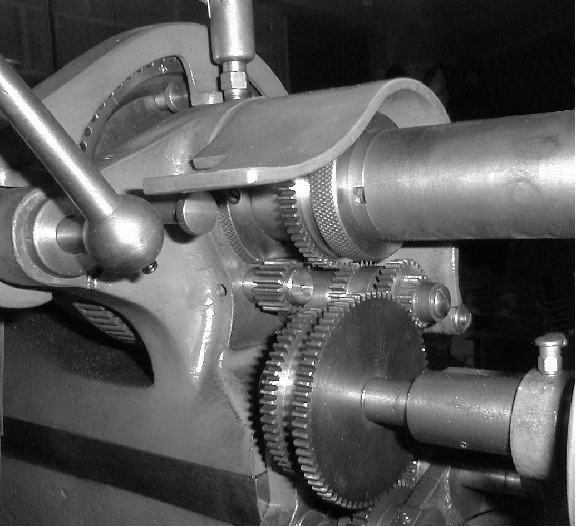

	Rear view of the sliding main-spindle gear and the drive down to the screwcutting gearbox. The large gear keyed to the headstock spindle can be moved through three positions to drive the carriage right or left - or put the gears out of mesh completely.

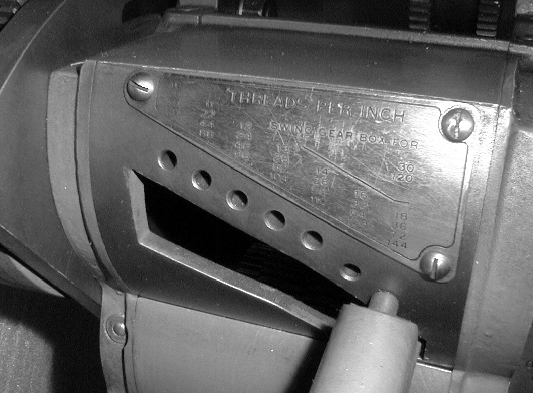

	Screwcutting gearbox front plate
