Greenfield Village at the Henry Ford Museum

Dearborn Detroit, Michigan USA

We have visited the Henry Ford twice and Greenfield Village four of five times.  My favorite building in the Village is the Armington and Sims machine shop.  Henry Ford collected buildings from all over and brought them to Dearborn Michigan for the public to enjoy.  And I sure do enjoy the machine shop.

Unfortunately the machine shop is laid out so that as you walk through it you pretty much only see that backs of the machines.  I did some investigating and learned that for a fee the museum would assign a minder to watch me take pictures from the operator side of the equipment.  So, for a mere $125.00 (62.50 for out British brothers) for the first hour I signed up.  The next hours would have been $75.00 per but the budget ran dry after one hour.

Here are the pictures.  The lighting is not very good for photography in the Armington and Sims building and I need to get a more powerful flash unit for the excellent Sony Alpha DSLR that I am now using but one makes do with what one has.

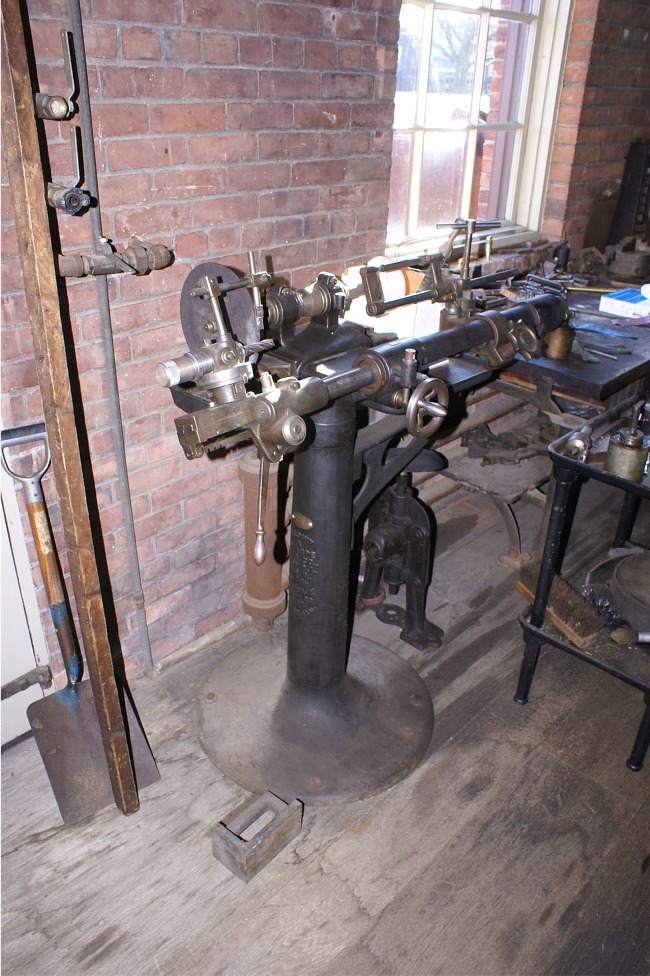

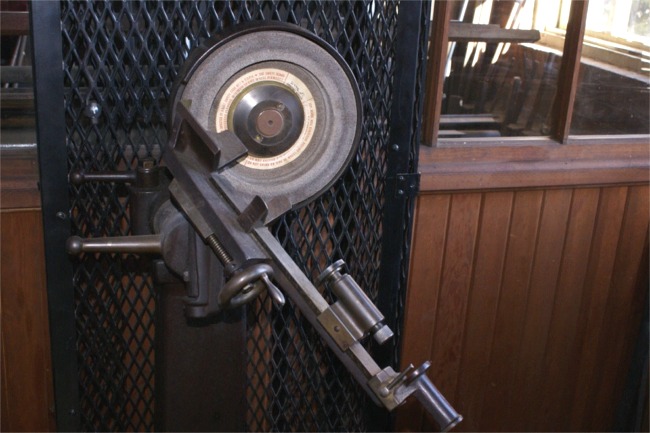

 DSC01162X.JPG (79059 bytes) Drill sharpener.  Looked like it could easily handle a two inch drill

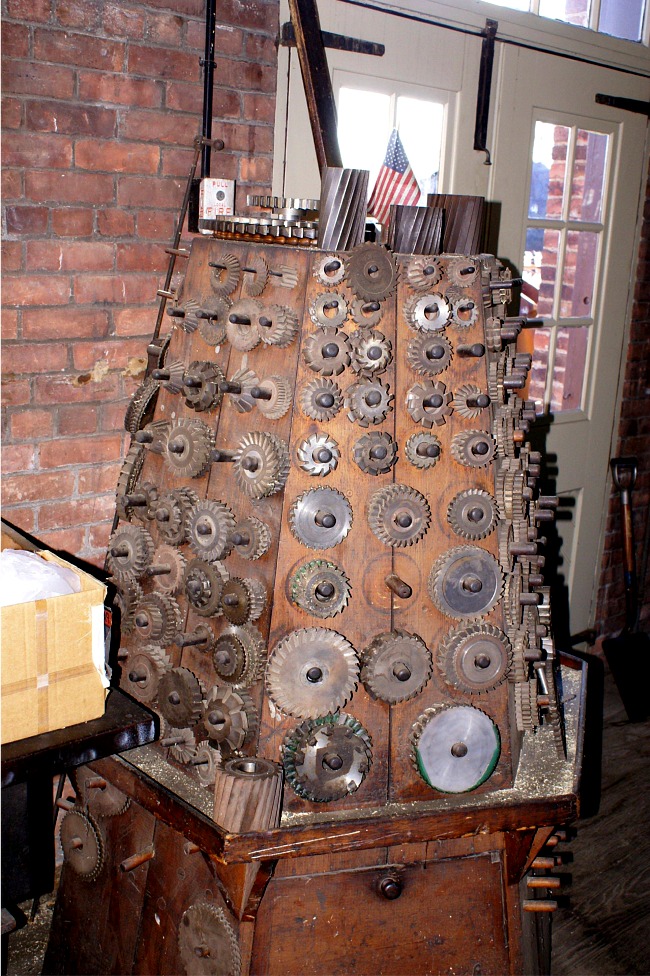

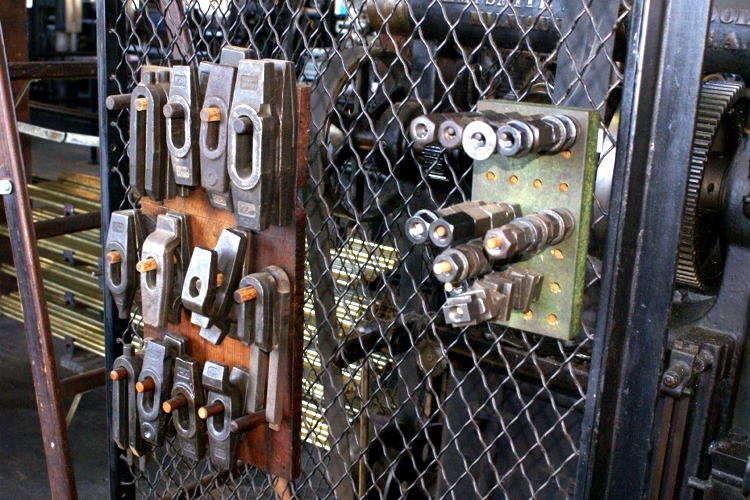

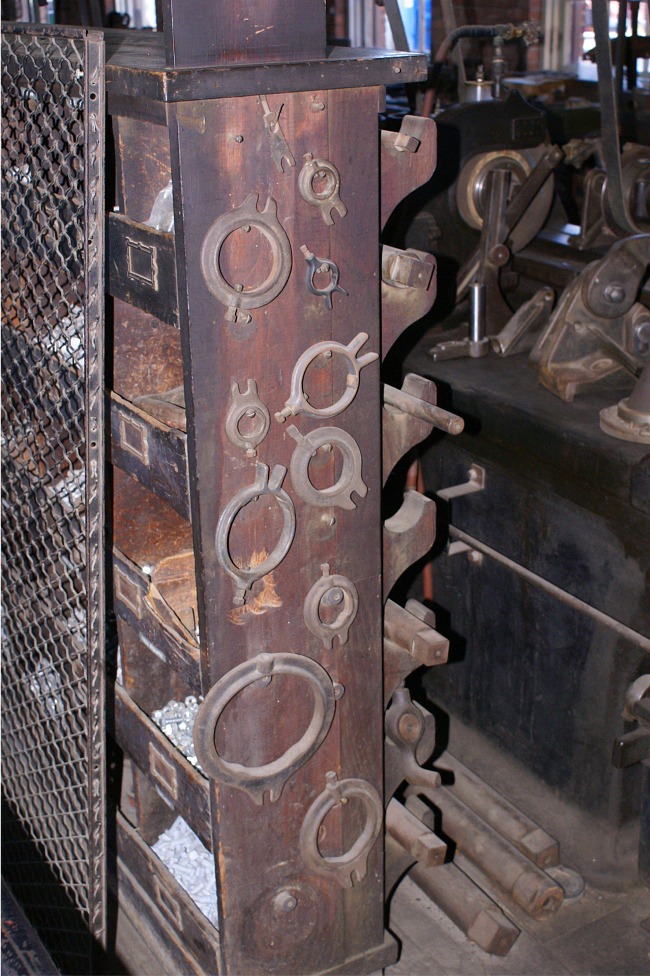

DSC01169X.JPG (272090 bytes)    DSC01168X.JPG (175851 bytes)  Shop organization.  Sure wish I could get my students to do this.

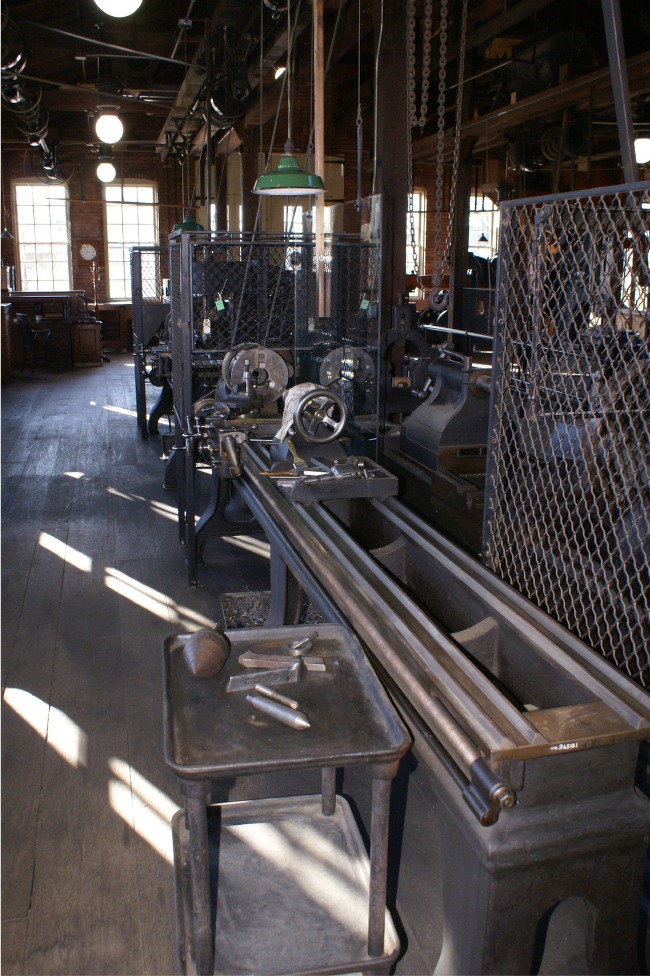

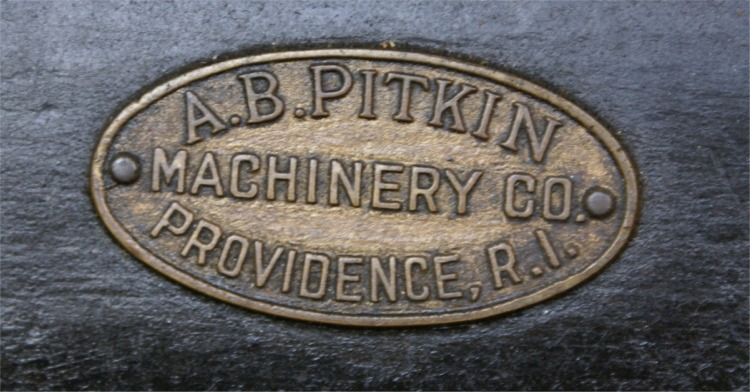

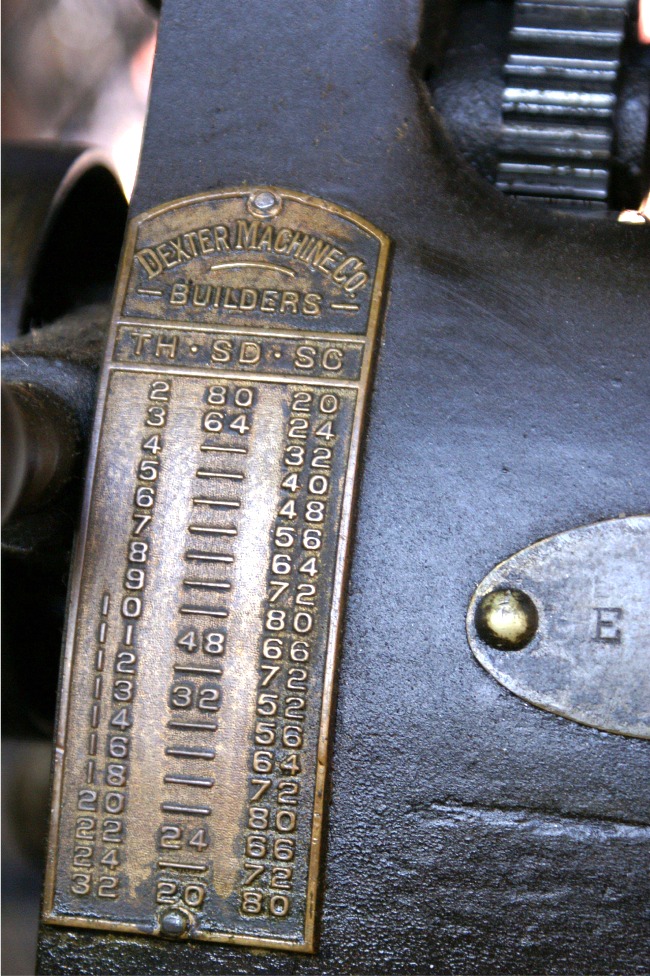

DSC01174X.JPG (222436 bytes)  DSC01177X.JPG (264931 bytes)  DSC01176X.JPG (101826 bytes)  Dexter Lathe

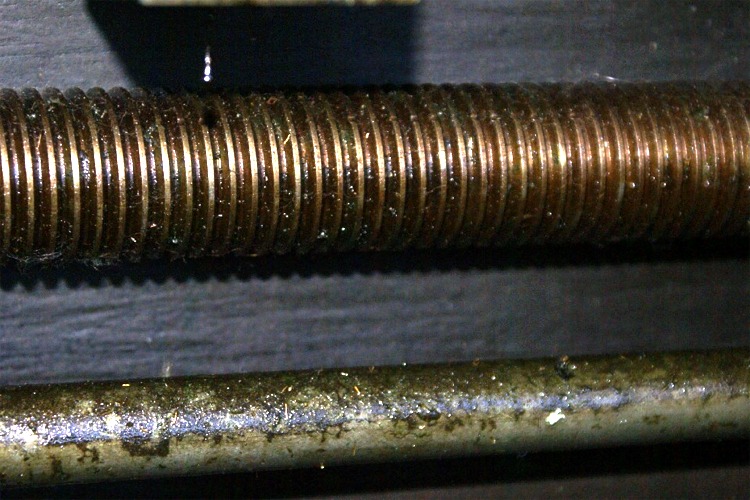

DSC01179X.JPG (135158 bytes)  The relatively fine thread on this lead screw caught my eye.

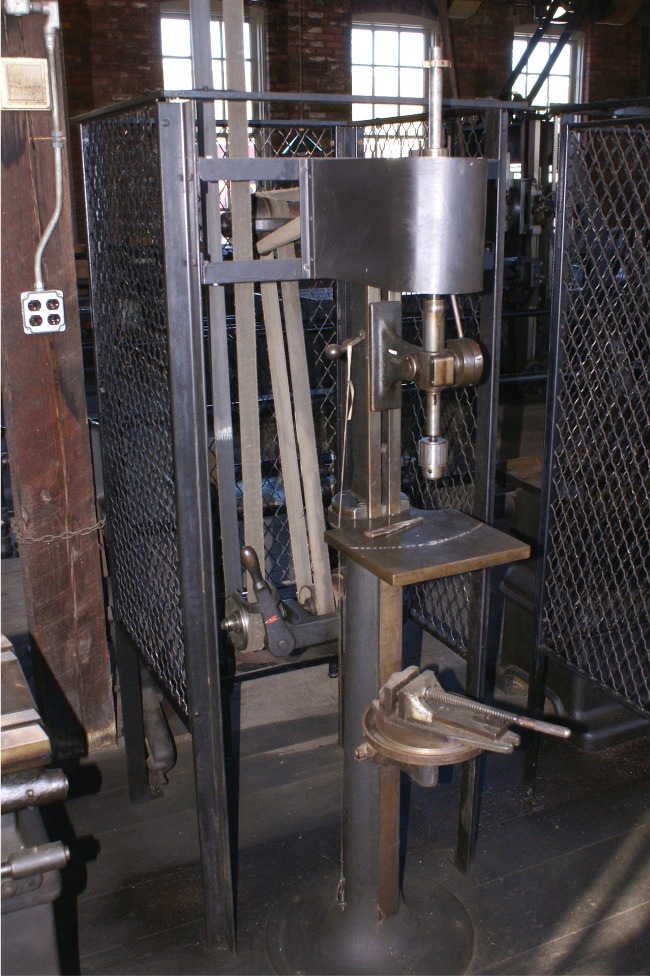

DSC01180X.JPG (213410 bytes)  There was quite a maze of belts to run this drill press

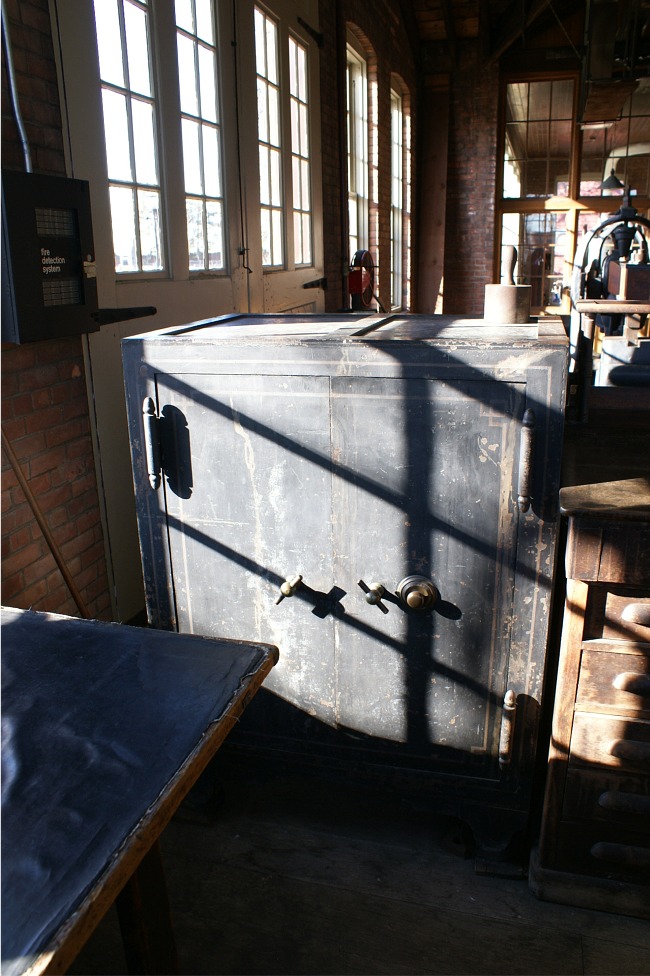

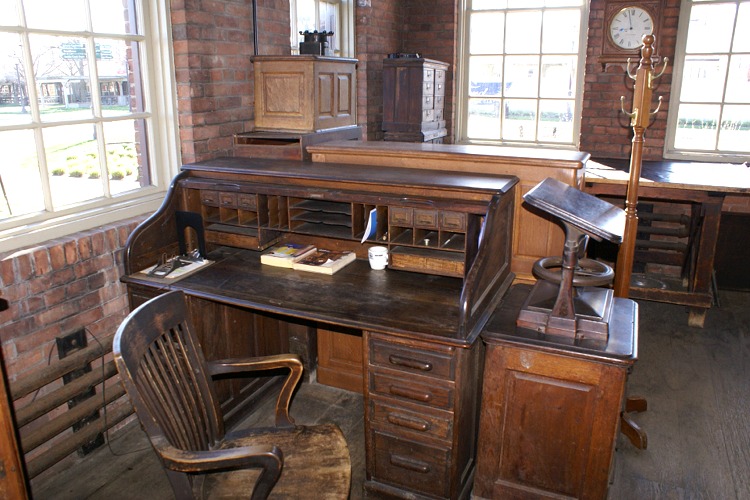

DSC01187X.JPG (131021 bytes)  DSC01188X.JPG (121950 bytes)  DSC01189X.JPG (181979 bytes)  Office area.

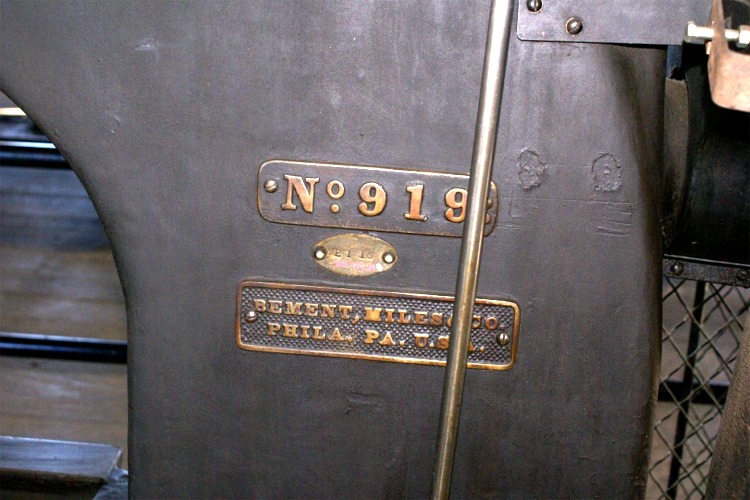

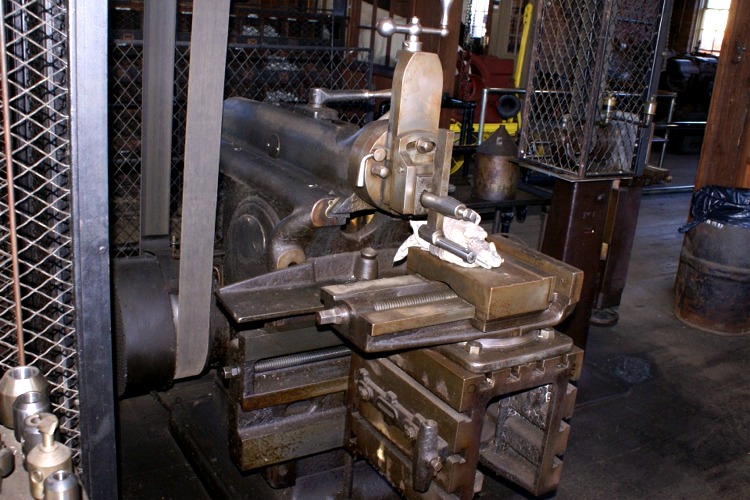

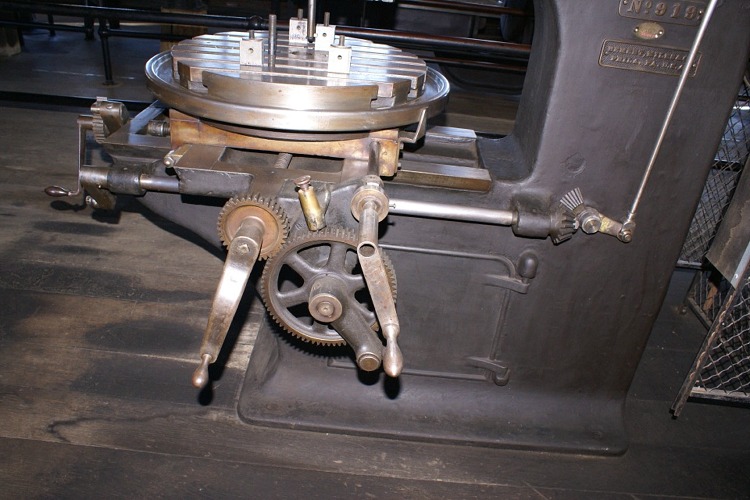

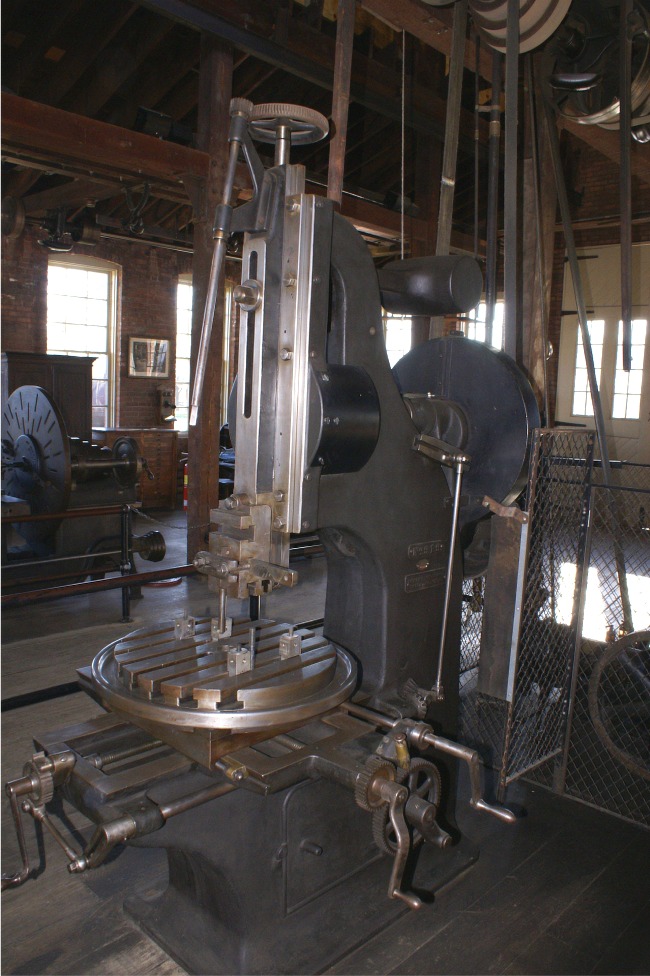

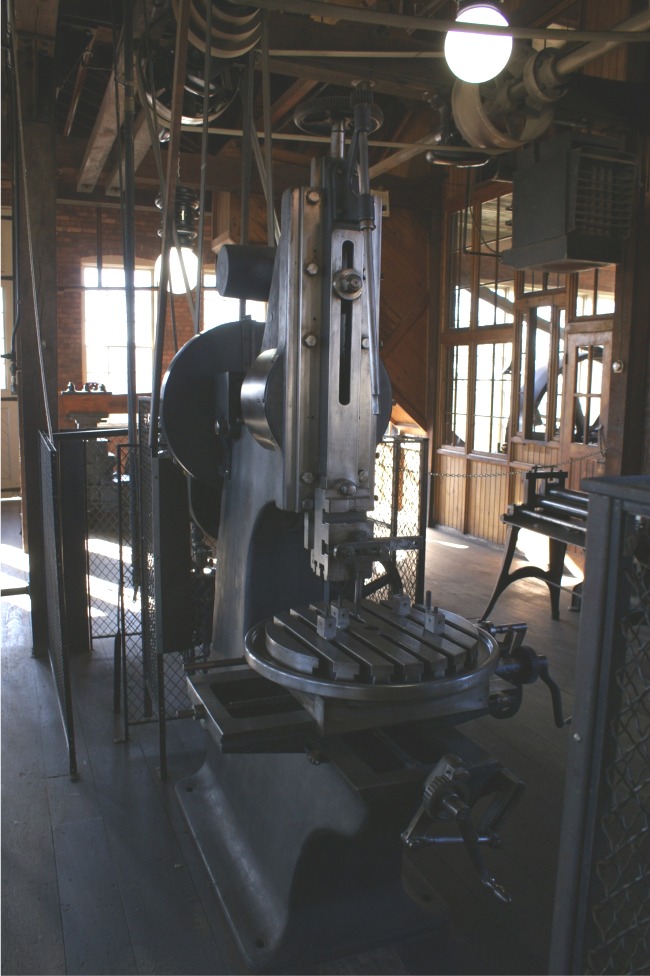

DSC01193X.JPG (179918 bytes)  DSC01195X.JPG (143884 bytes)  DSC01194X.JPG (111783 bytes)  DSC01196X.JPG (118989 bytes)  Some call this a slotter.  I call it a vertical shaper.  Spent many months learning how to run this type of machine during my apprenticeship at Pratt & Whitney Machine Tool in West Hartford, CT when I was a lad.  We had two machine, one with a rotary table that would disengage and the other with a RT that did not disengage.  I can tell you for sure that you get real good at aligning parts when you have to crank the table through 360 degrees.

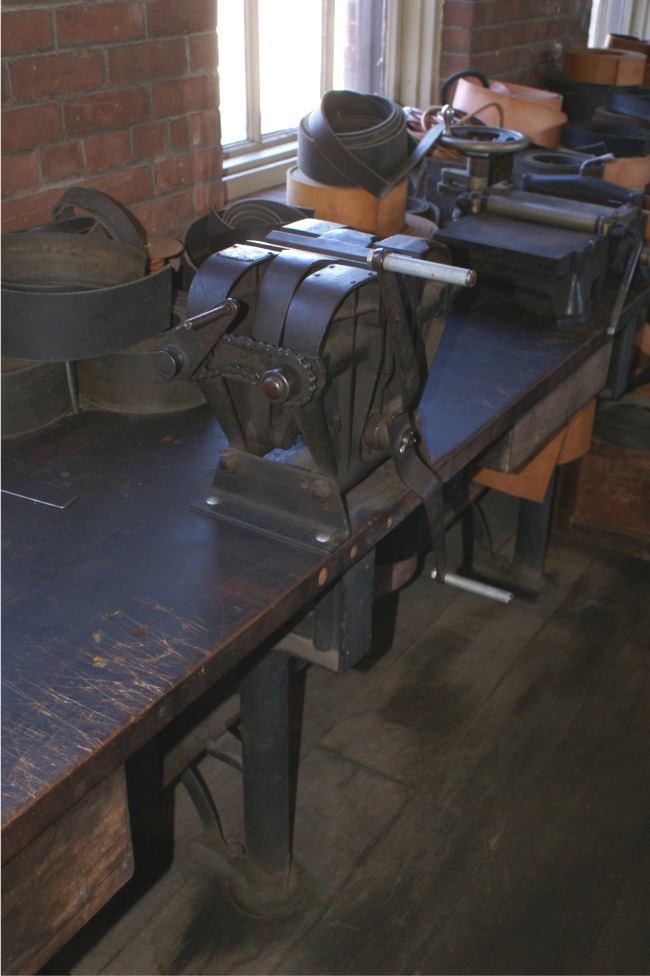

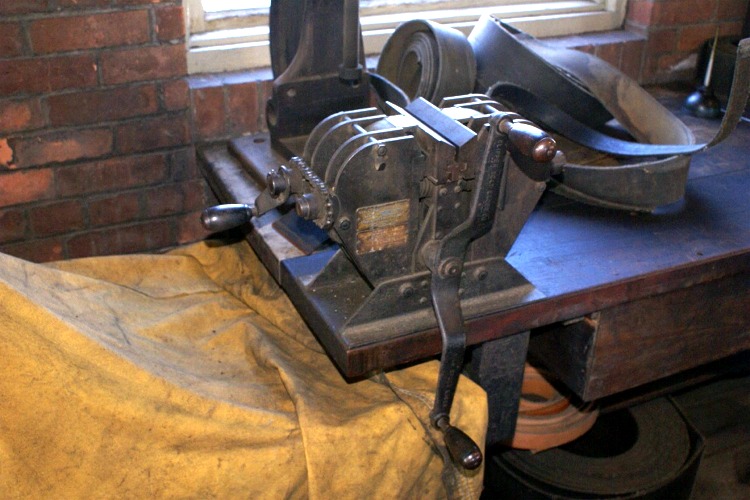

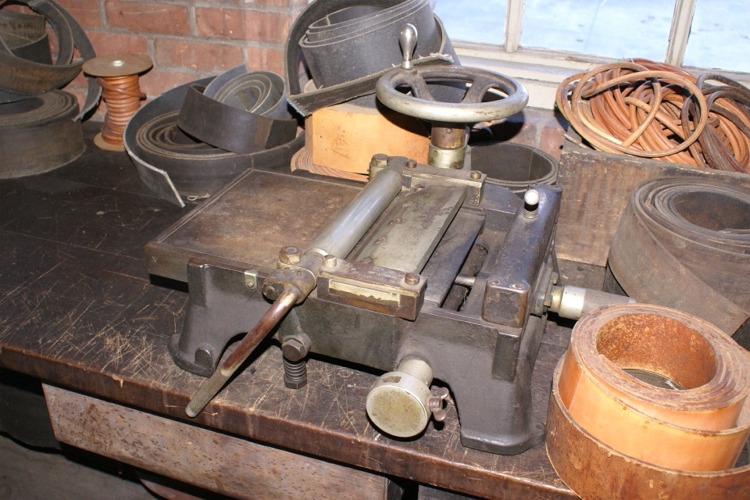

DSC01197X.JPG (116393 bytes)  DSC01199X.JPG (128267 bytes)  Two massive clamping tools (don't know the correct name) for putting the alligator clips on leather belts.

DSC01200X.JPG (128856 bytes)  No idea whatsoever what this is but it looked neat and couldn't move out of my way so it got photographed.

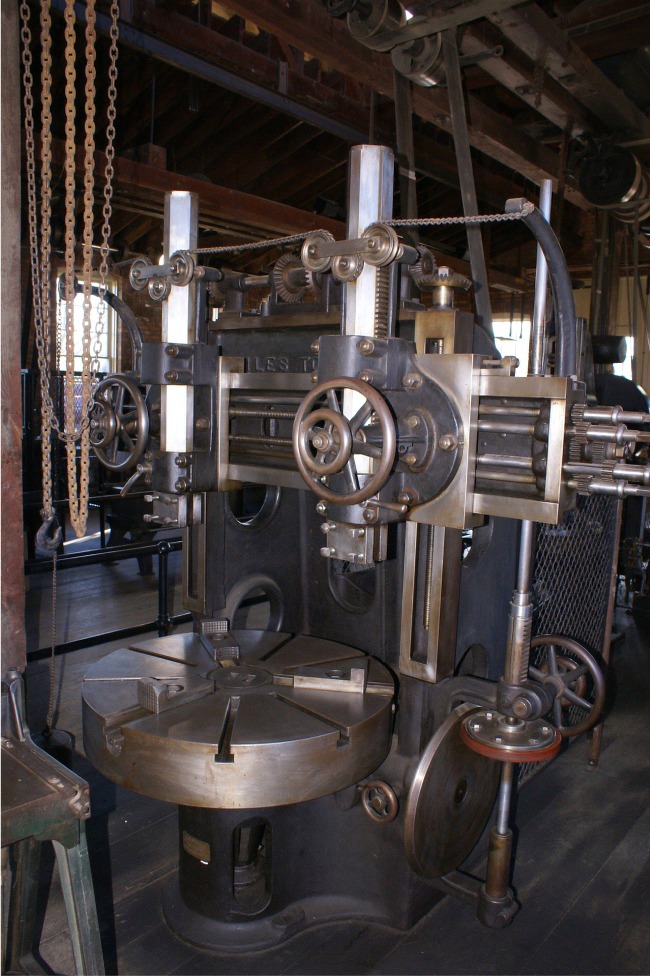

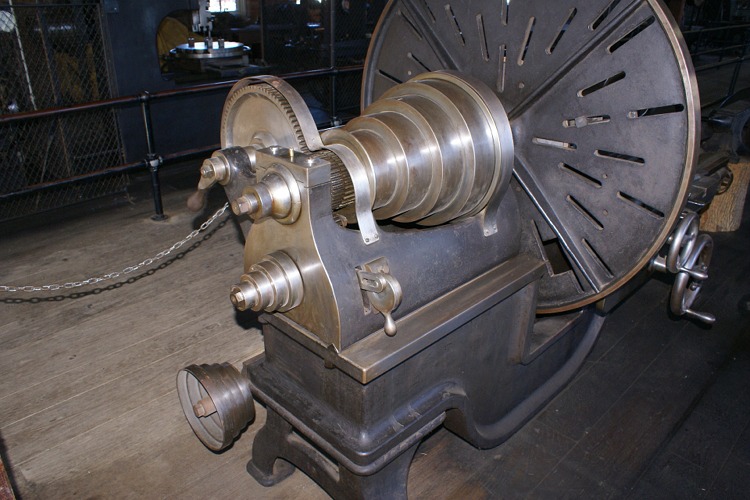

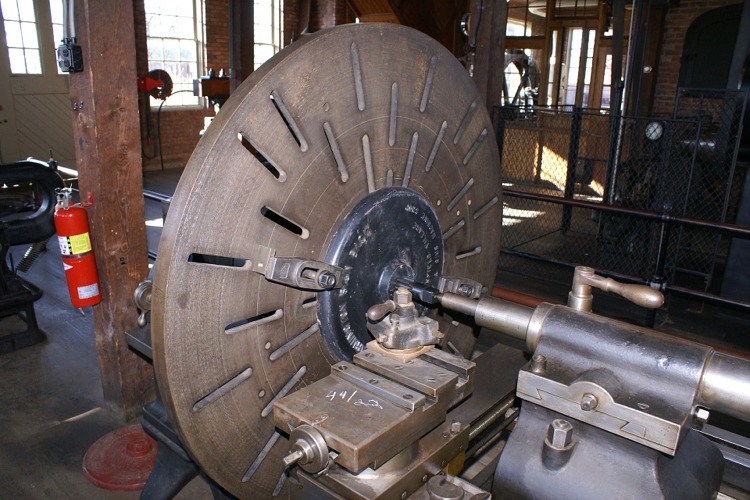

DSC01201X.JPG (200744 bytes) My first impulse was to call this a vertical turret lathe.  But since it doesn't have a turret I guess that would not be correct.

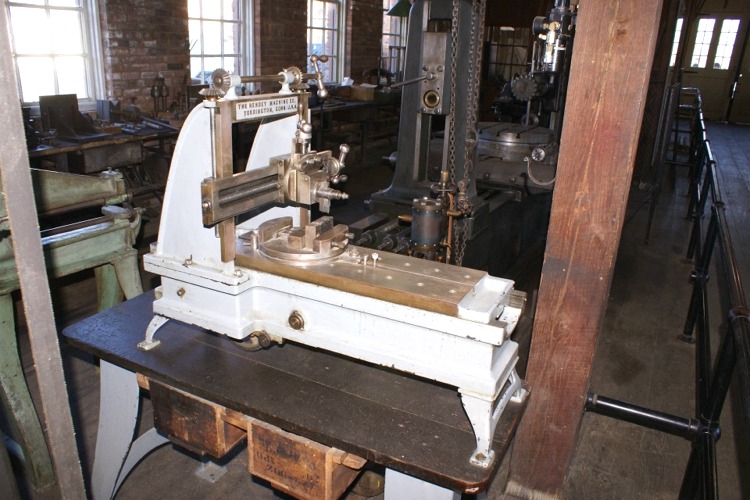

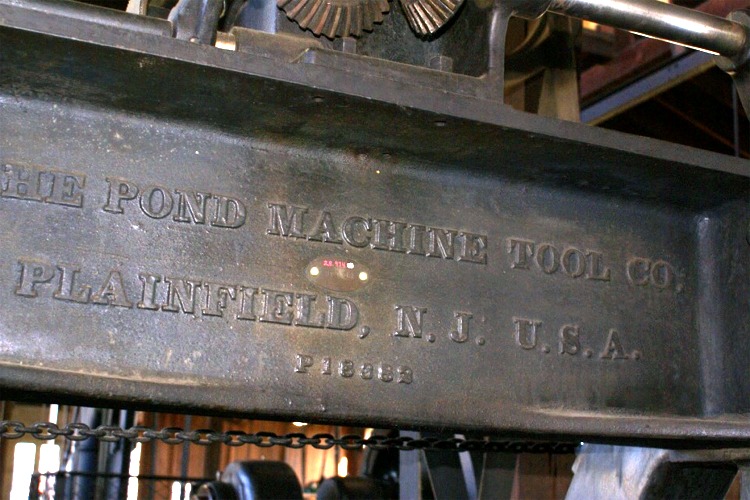

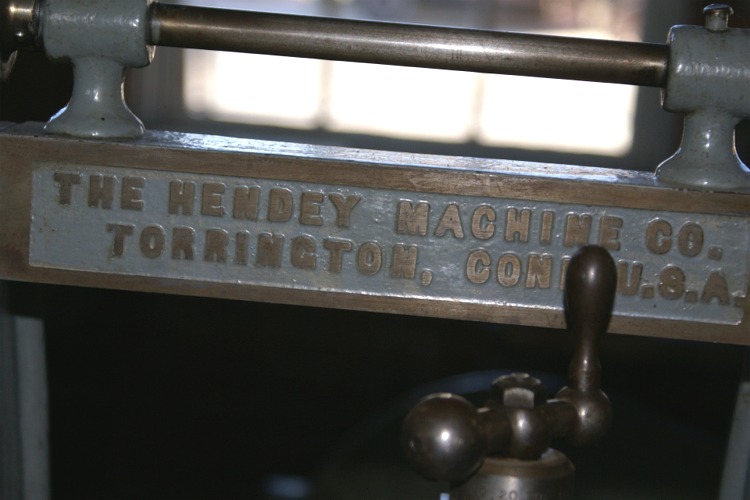

DSC01202X.JPG (172388 bytes)  DSC01203X.JPG (130630 bytes)    DSC01206X.JPG (122060 bytes)  DSC01210X.JPG (85920 bytes)  DSC01209X.JPG (124347 bytes)  DSC01211X.JPG (71337 bytes)

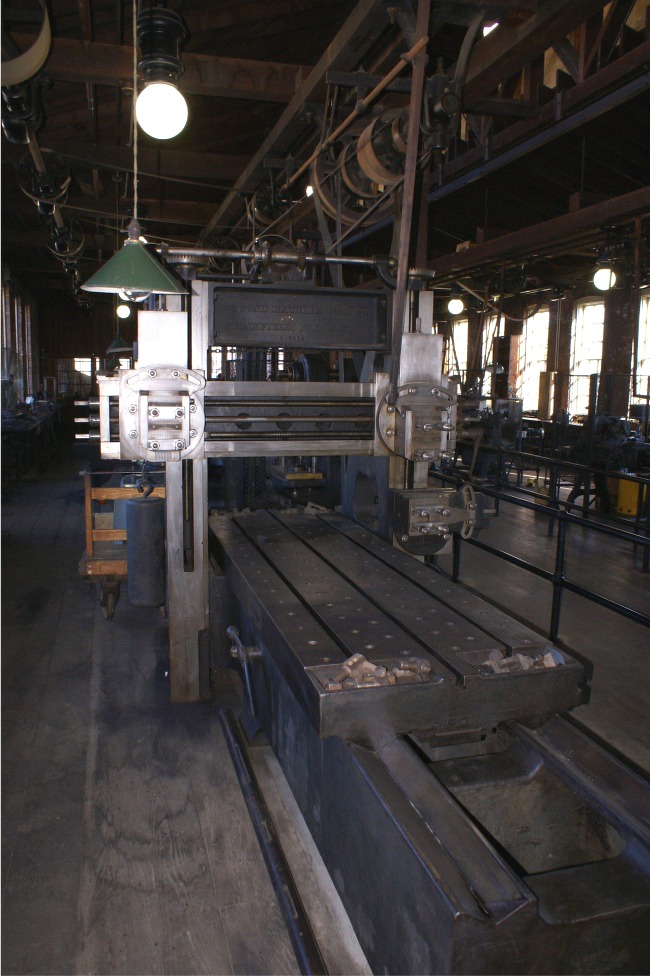

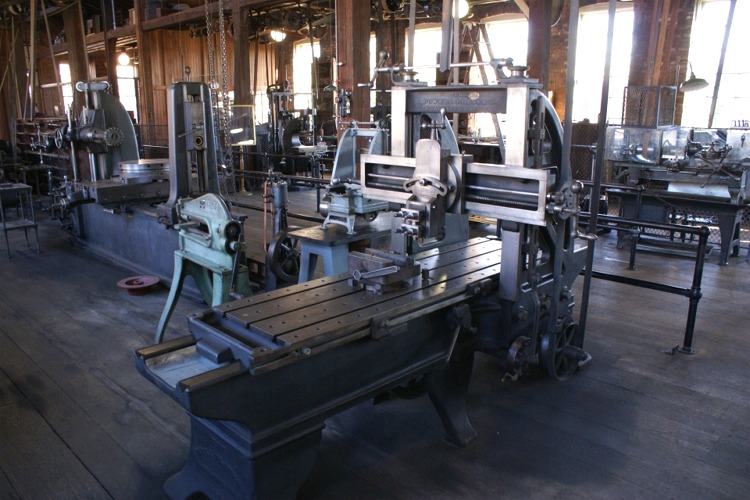

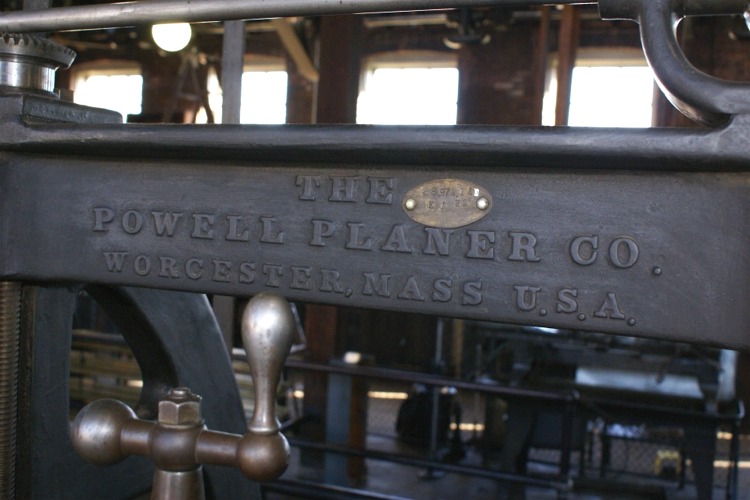

Planers, just pick the right sized one for the work you need to do.

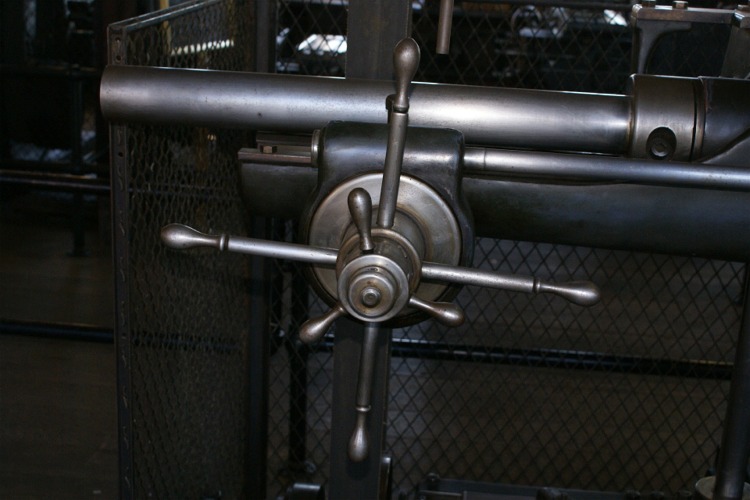

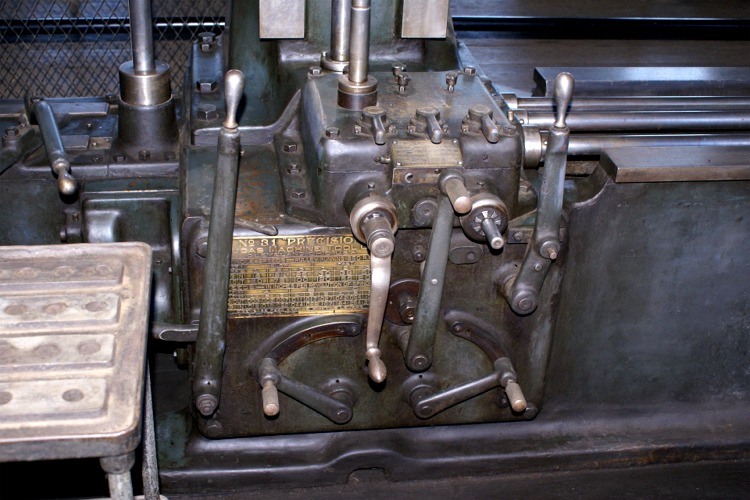

DSC01213X.JPG (131494 bytes)  DSC01214X.JPG (230240 bytes)  DSC01215X.JPG (227911 bytes)  DSC01216X.JPG (172696 bytes)  DSC01217X.JPG (120876 bytes)   DSC01218X.JPG (80633 bytes)

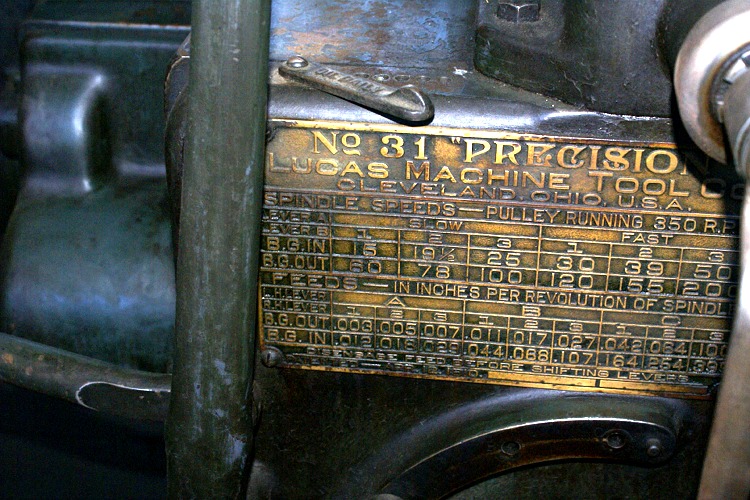

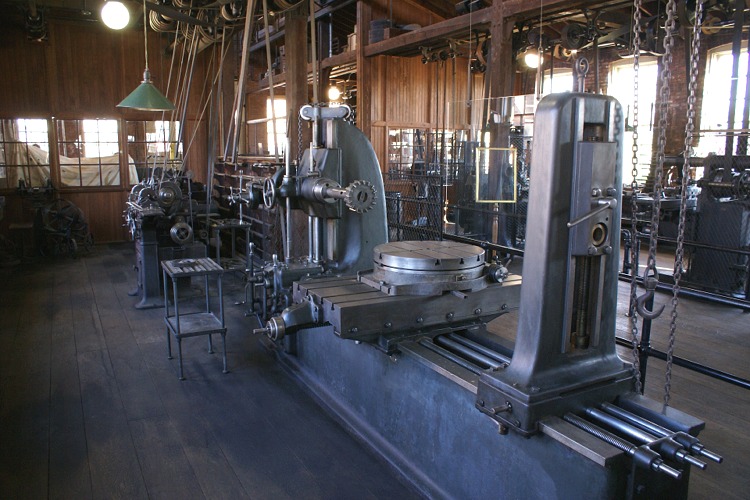

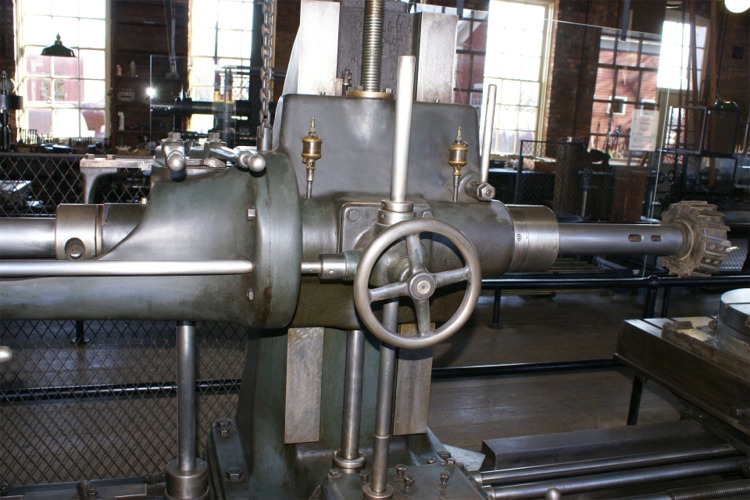

DSC01219X.JPG (117466 bytes)  Number 31 Lucas Horizontal Boring Mill.  I admit it.  I really love boring mills.  Spent a lot of time running them at P&W Machine Tool, more time at P&W Aircraft and still more time on one at the Electric Boat division of General Dynamics in Groton, CT.  That one had a platform on the head so the operator could ride up the column with the head.  Column must have been 20 feet tall and the table was the size of a not so small room.

DSC01220X.JPG (108673 bytes)  DSC01221X.JPG (102092 bytes)  DSC01222X.JPG (119898 bytes)  DSC01223X.JPG (191076 bytes)

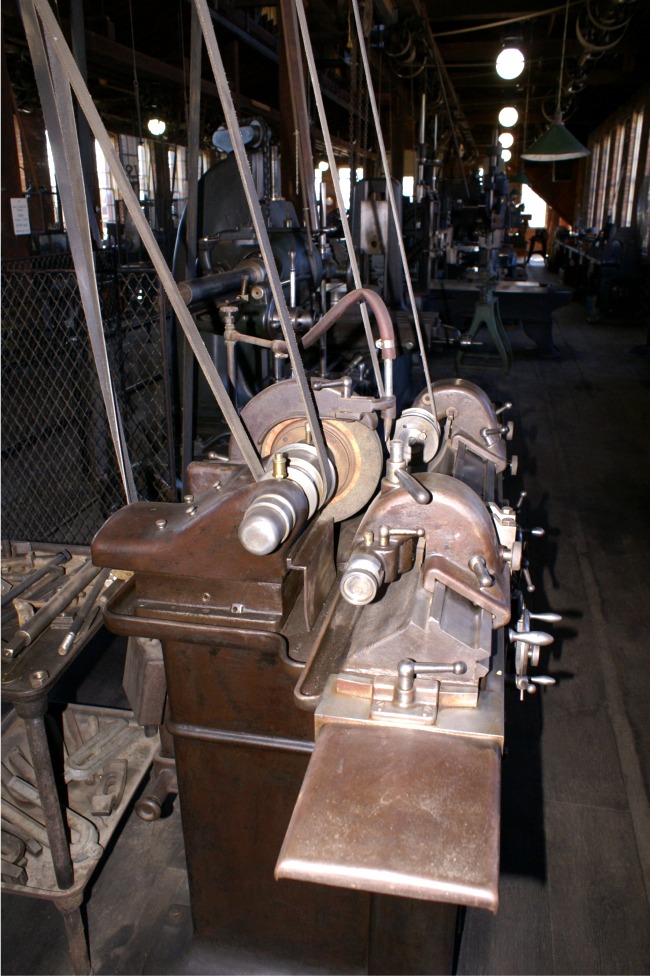

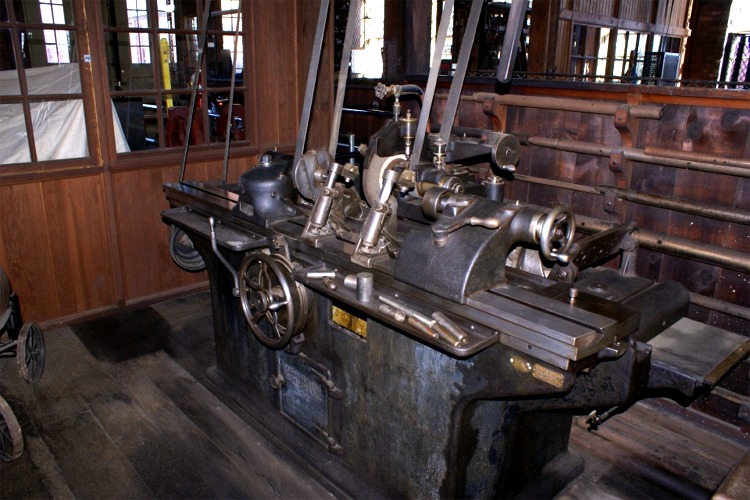

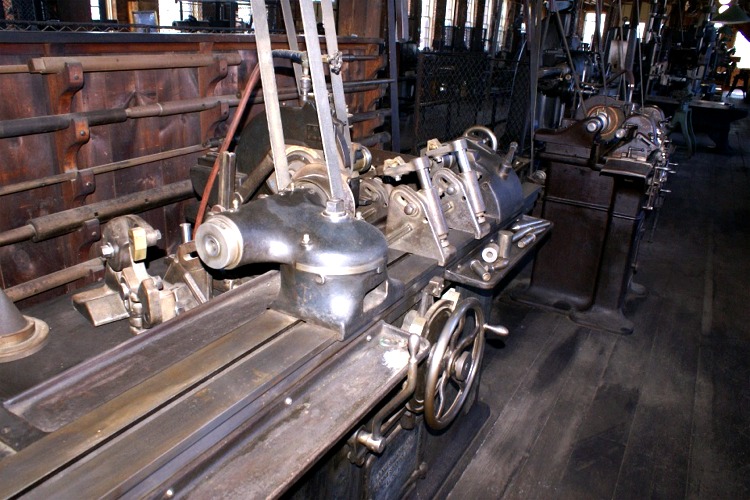

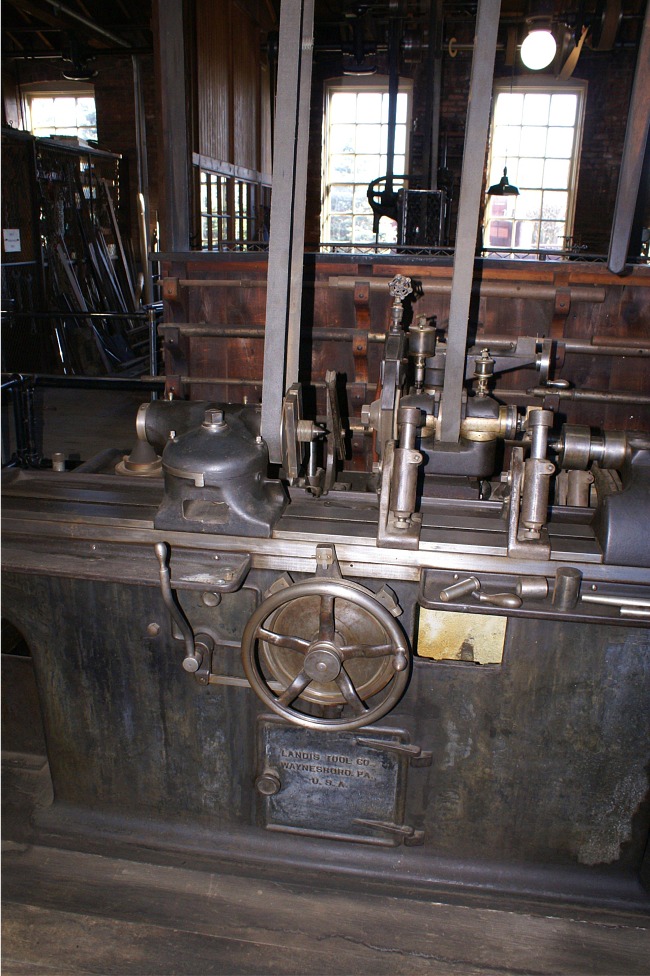

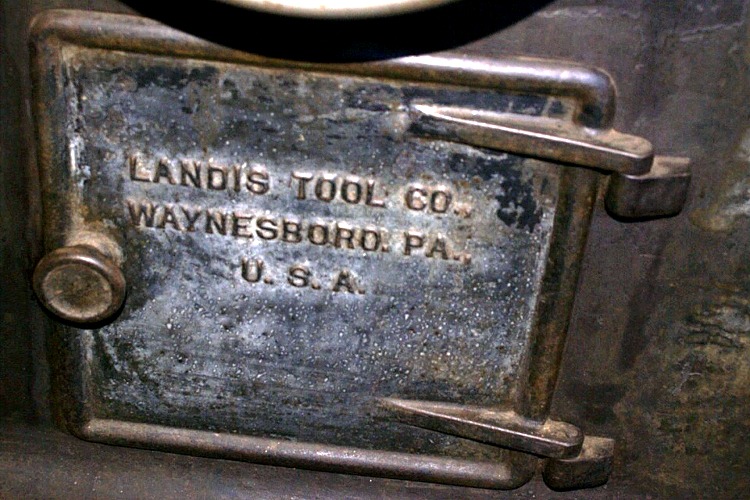

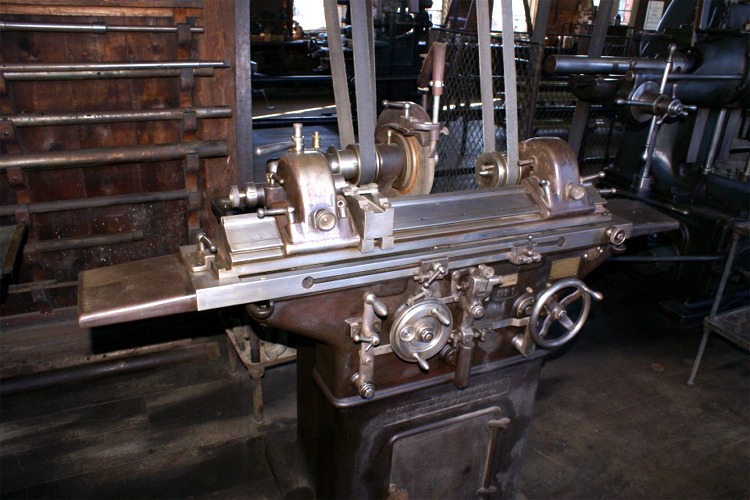

DSC01226X.JPG (146600 bytes)  DSC01227X.JPG (141432 bytes)  DSC01224X.JPG (131067 bytes)  DSC01225X.JPG (207159 bytes)  Landis O.D. grinder

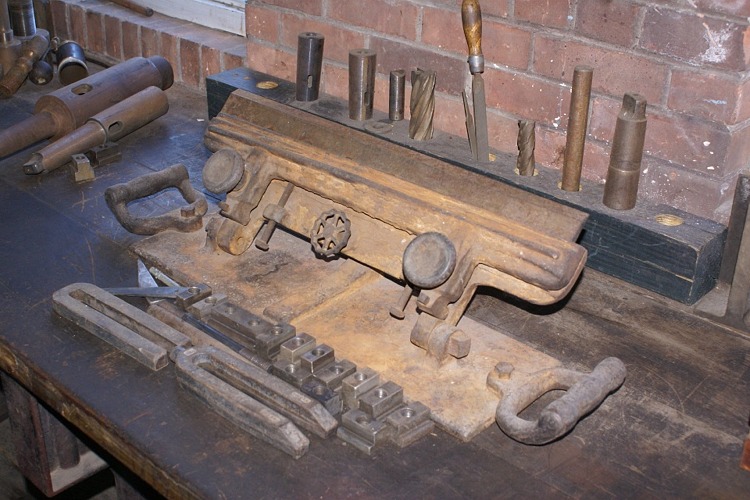

DSC01228X.JPG (130951 bytes)  I took this fixture to be for grinding something like wood planer blades.

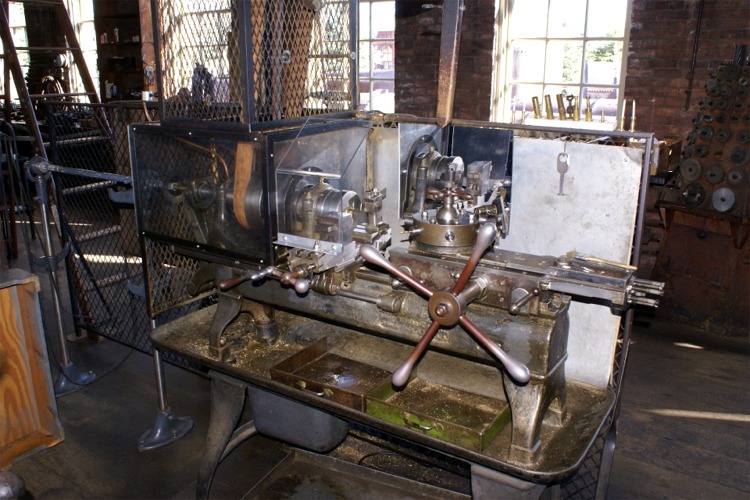

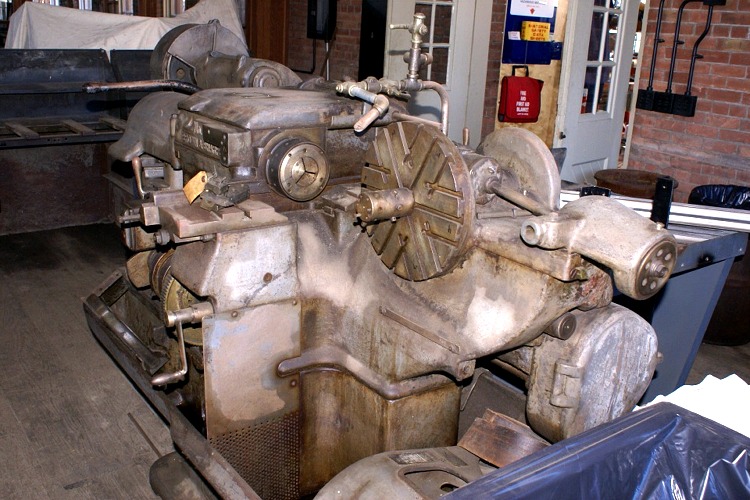

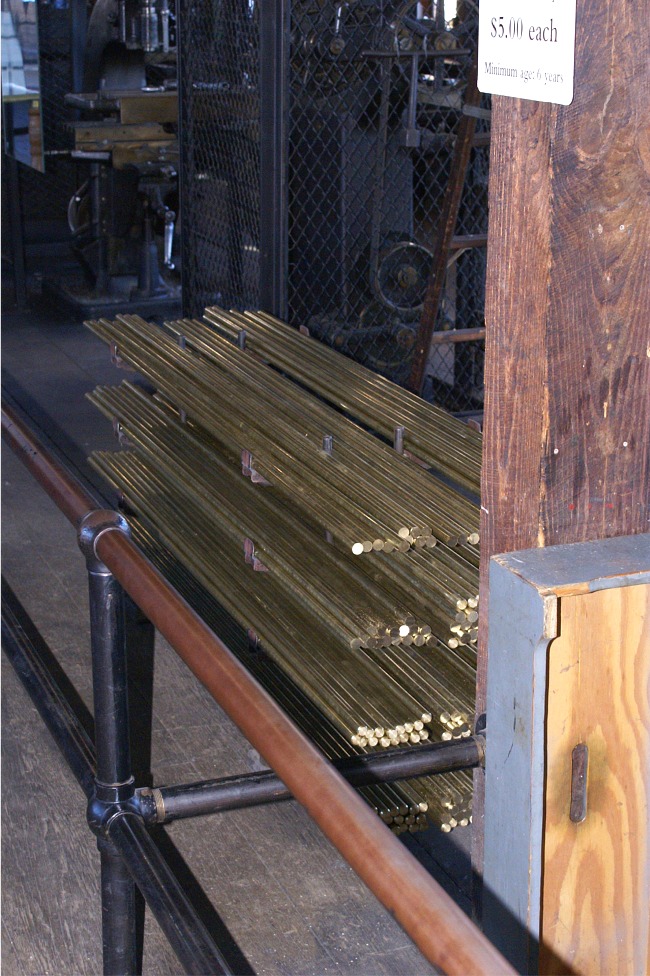

DSC01229X.JPG (137518 bytes)  DSC01230X.JPG (226923 bytes)  This small turret lathe is used to make small candle stick holders.  The public is invited (for a small fee) to make on to take as a souvenir.

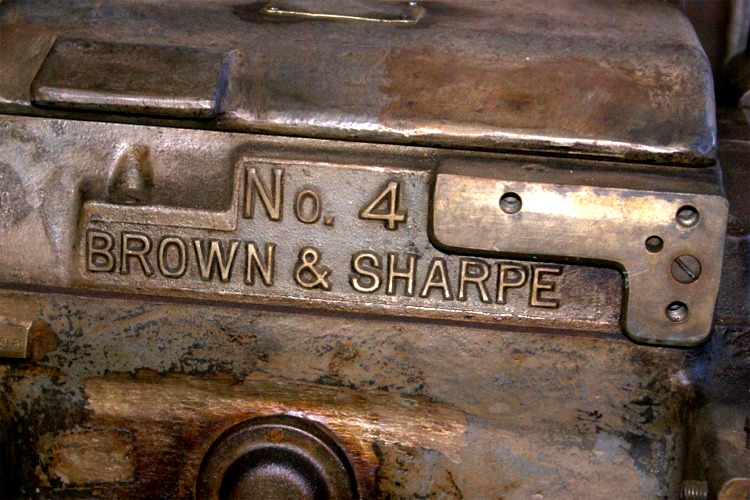

DSC01232X.JPG (126429 bytes)  DSC01233X.JPG (146173 bytes)  DSC01233X.JPG (146173 bytes)  DSC01235X.JPG (148822 bytes)
